Size Chart

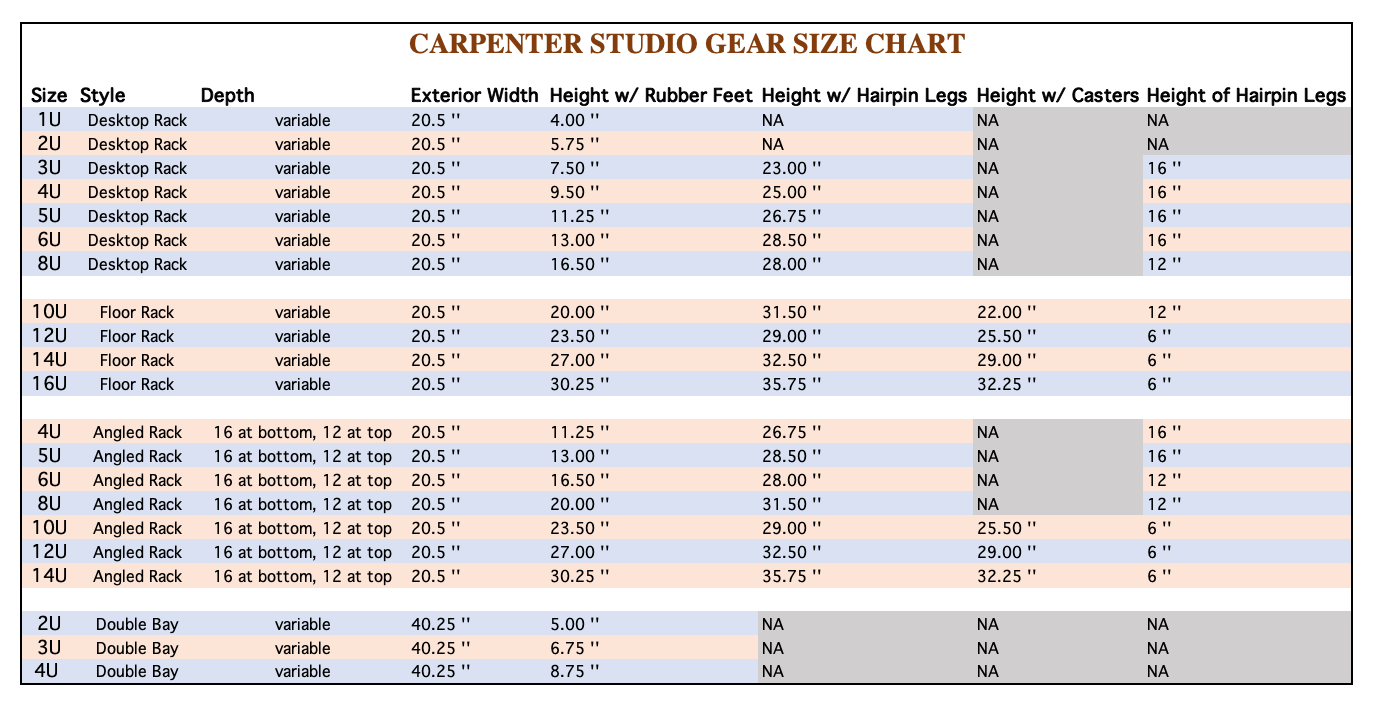

You can also view or download this chart in image form



Size Style Depth Exterior Width Height w/ Rubber Feet Height w/ Hairpin Legs Height w/ Casters Height of Hairpin Legs
1U Desktop Rack variable 20.5 '' 4.00 '' NA NA NA
2U Desktop Rack variable 20.5 '' 5.75 '' NA NA NA
3U Desktop Rack variable 20.5 '' 7.50 '' 23.00 '' NA 16 ''
4U Desktop Rack variable 20.5 '' 9.50 '' 25.00 '' NA 16 ''
5U Desktop Rack variable 20.5 '' 11.25 '' 26.75 '' NA 16 ''
6U Desktop Rack variable 20.5 '' 13.00 '' 28.50 '' NA 16 ''
8U Desktop Rack variable 20.5 '' 16.50 '' 28.00 '' NA 12 ''

10U Floor Rack variable 20.5 '' 20.00 '' 31.50 '' 22.00 '' 12 ''
12U Floor Rack variable 20.5 '' 23.50 '' 29.00 '' 25.50 '' 6 ''
14U Floor Rack variable 20.5 '' 27.00 '' 32.50 '' 29.00 '' 6 ''
16U Floor Rack variable 20.5 '' 30.25 '' 35.75 '' 32.25 '' 6 ''

4U Angled Rack 16 at bottom, 12 at top 20.5 '' 11.25 '' 26.75 '' NA 16 ''
5U Angled Rack 16 at bottom, 12 at top 20.5 '' 13.00 '' 28.50 '' NA 16 ''
6U Angled Rack 16 at bottom, 12 at top 20.5 '' 16.50 '' 28.00 '' NA 12 ''
8U Angled Rack 16 at bottom, 12 at top 20.5 '' 20.00 '' 31.50 '' NA 12 ''
10U Angled Rack 16 at bottom, 12 at top 20.5 '' 23.50 '' 29.00 '' 25.50 '' 6 ''
12U Angled Rack 16 at bottom, 12 at top 20.5 '' 27.00 '' 32.50 '' 29.00 '' 6 ''
14U Angled Rack 16 at bottom, 12 at top 20.5 '' 30.25 '' 35.75 '' 32.25 '' 6 ''

2U Double Bay variable 40.25 '' 5.00 '' NA NA NA
3U Double Bay variable 40.25 '' 6.75 '' NA NA NA
4U  Double Bay variable 40.25 '' 8.75 '' NA NA NA

What size rack do you need?

Add your gear and we will work out the rack units and the depth. Then take it straight to the builder and pick your wood and finish.

Your rack

Nothing racked yet

Rack units0U
Deepest unit0in
Depth to order0in
Build this rack

Gear not listed? Send us the model and we will size it for you. More than half our racks are custom.

Check your own gear before ordering. Depths here are the manufacturer's published chassis measurement. They do not include the cables, connectors, and power plugs behind your unit, which usually need another two to three inches. Our depth recommendation adds that clearance, but rear connectors vary a lot between units, so measure yours before you order. Not sure? Send us a message and we will check it with you.
